Equipment Installation at Marion Site

The RAM technical crew completed a significant milestone at the Marion repeater site, finishing the grunt work on the north side of the building. This installation lays the groundwork for the new VA4STB repeater and future network expansion.

Installation Details

Building on the mounting brackets installed a few weeks ago, the crew successfully installed:

• Main mast and pole-to-pole mount
• 3.8 GHz radio and dish antenna for network backhaul
• Site camera
• UHF 8-bay antenna
• Dual-band vertical antenna for APRS (temporary installation)

Next Steps

The networking team will now configure the data connections to bring the site online. A D-STAR UHF repeater will be installed and transcoded to the AllStar network. The callsign for this repeater is still to be determined.

Future plans include establishing microwave links to the Winnipeg Senior Citizens Radio Club (VE4WSC) clubhouse and the VE4WDR site at 55 Nassau, as well as a new site in Elmwood, further expanding RAM’s network coverage and redundancy.

Work Crew

Thanks to the following volunteers who made this installation possible:

• Wyatt VE4WDZ
• Nolan VE4NOL
• Evan VE4EVN
• Derek VE4HAY

Photos

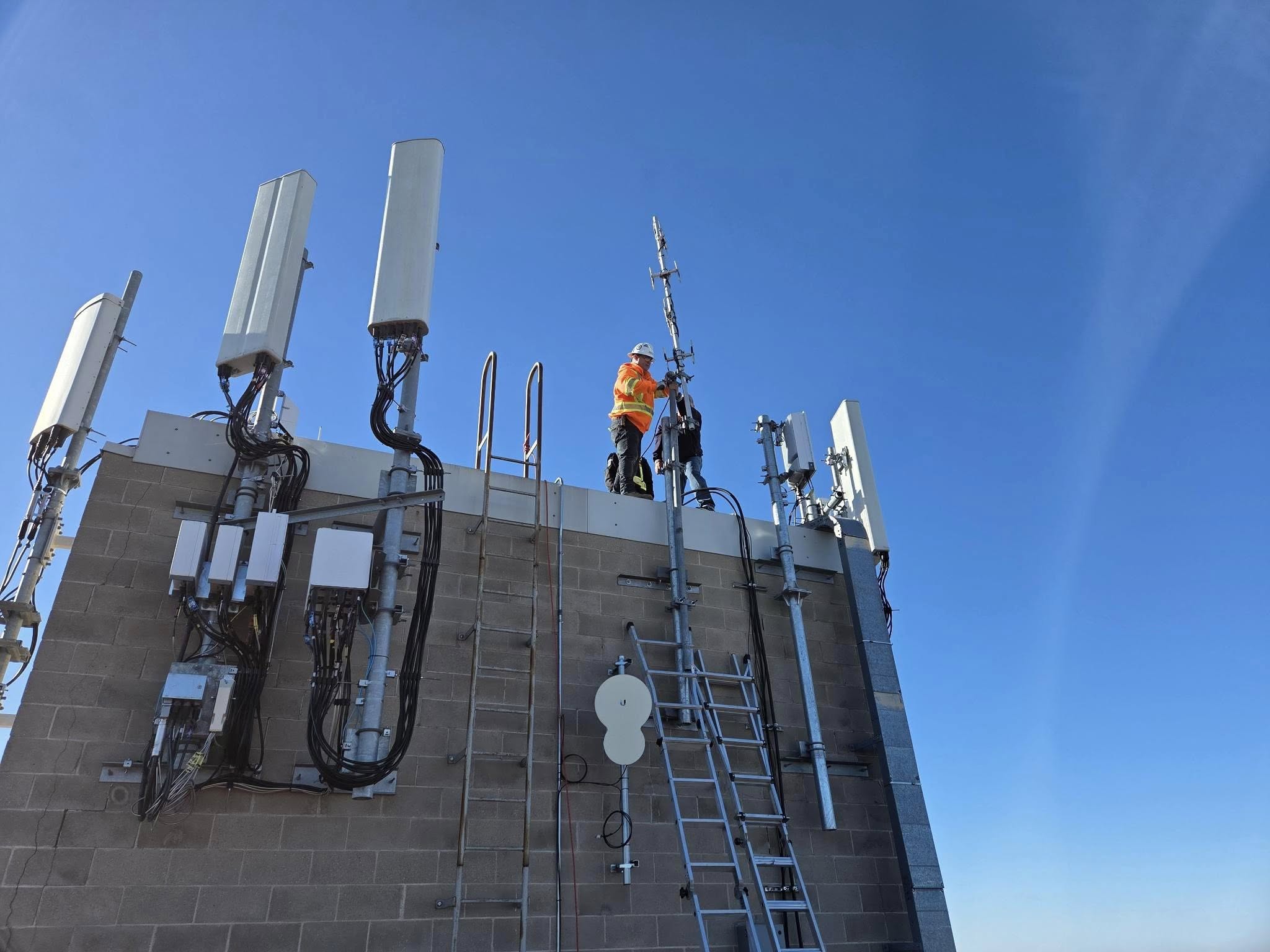

The crew mounting the 8-bay UHF antenna at the Marion site.

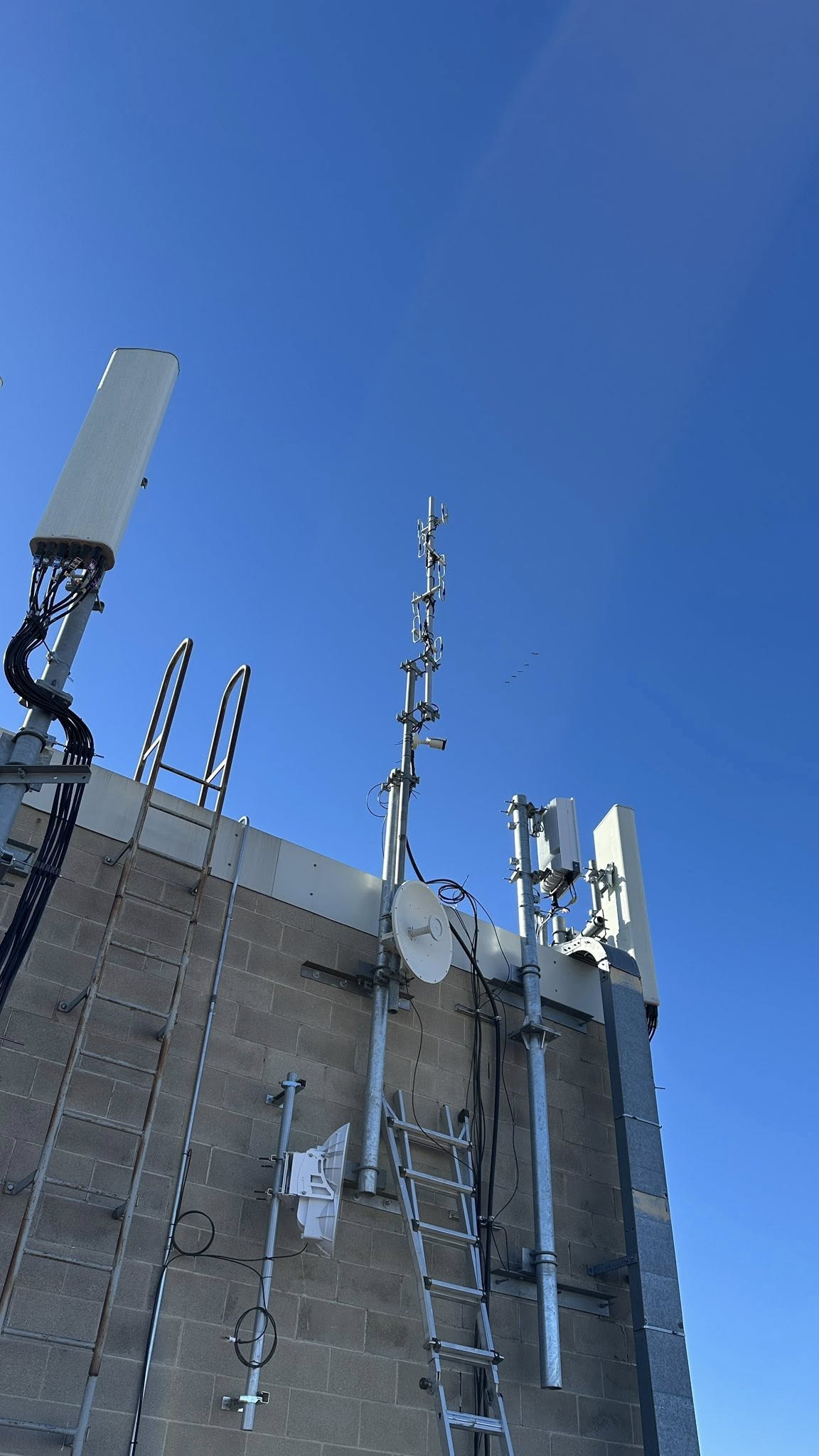

The completed main mast with 8-bay UHF antenna, 3.8 GHz microwave dish, and site camera installed.

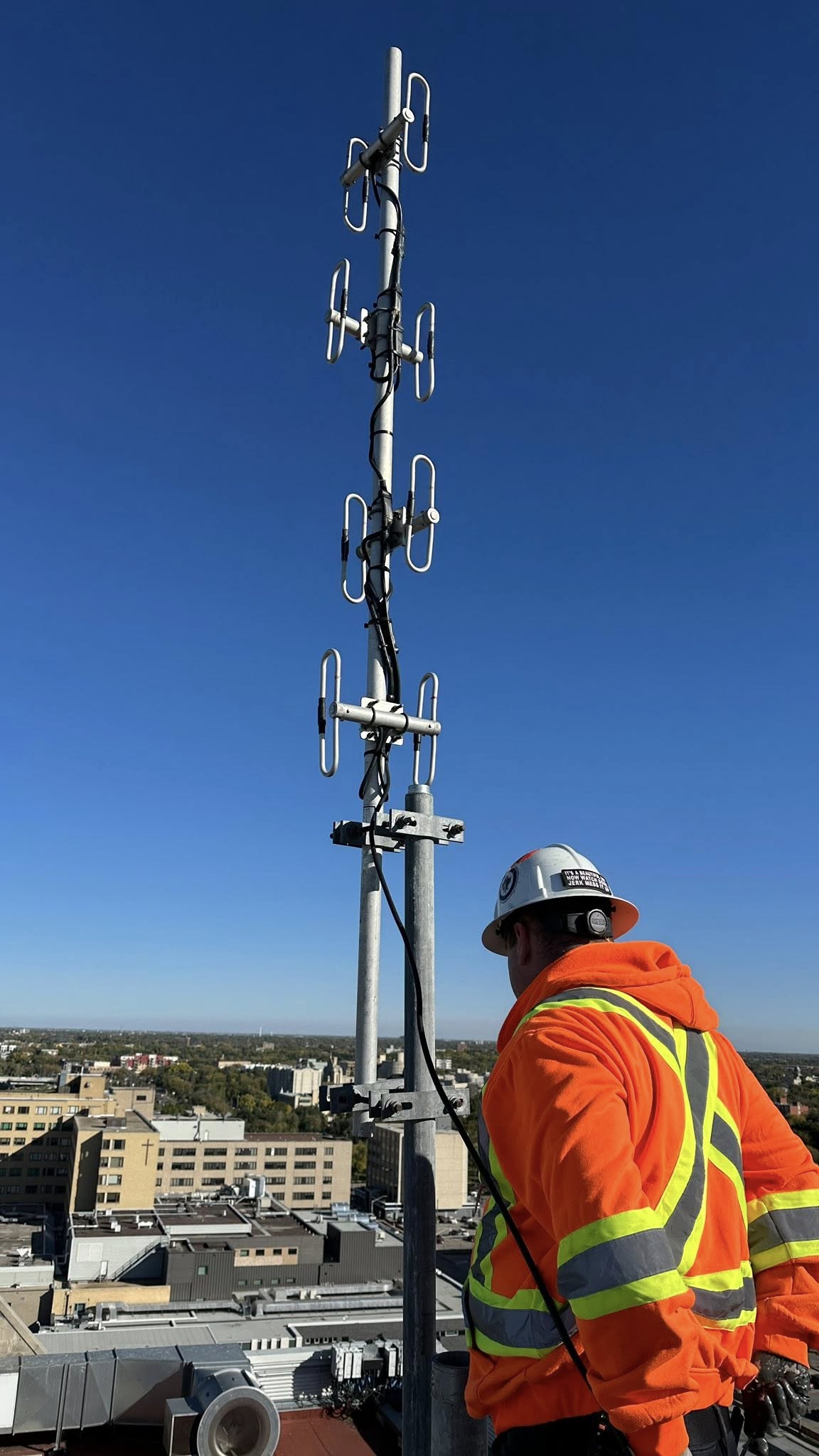

Nolan VE4NOL taking in the view of our amazing coverage to the north of the city.

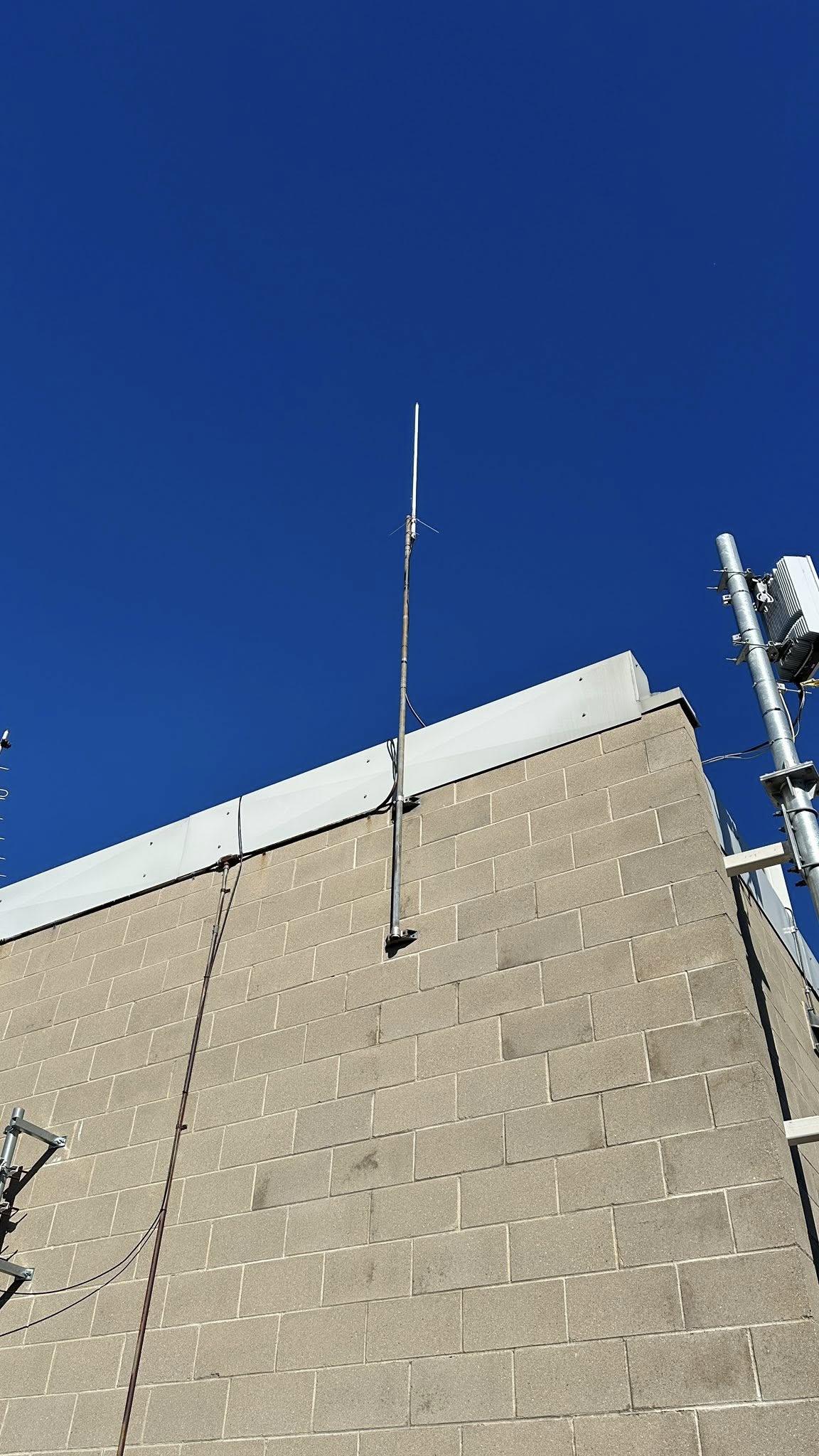

The temporary dual-band vertical antenna installation for APRS.
